m:explore.eis

Streamline Your Liquid Analysis

Experience the future of liquid analysis with m:explore.eis. Our in-line measurement system eliminates the need for time-consuming sampling, providing real-time results directly from your process line. With advanced data analysis capabilities, including predictive maintenance, you can optimize your processes and ensure product quality. Designed to handle challenging samples, such as non-ionic surfactants and high-salt solutions, m:explore.eis offers unparalleled versatility and reliability.



Would you like to further explore the exciting application scenario of the m:explore.eis?
Head over to our Applications section!

The m:explore.eis is a sophisticated tool that delves into the intricate electrical properties of liquids. It directly samples liquid from your process and subjects it to Electrochemical Impedance Spectroscopy (EIS).




Here's how it works

  • Direct Sampling
    The device draws a sample of liquid directly from your process, ensuring real-time analysis.
  • Electrochemical Impedance Spectroscopy (EIS)
    A hyper wideband measurement signal is applied to the liquid, and the reflected signal is measured. Due to the many frequencies included the hyper wideband signal, the device can obtain a wide range of information about the liquid's properties.
  • Data Analysis
    The device immediately processes the measured data to provide insights into the liquid's condition, composition, or other relevant parameters.

This information can be used to optimize processes, ensure product quality, and counter process issues early-on.

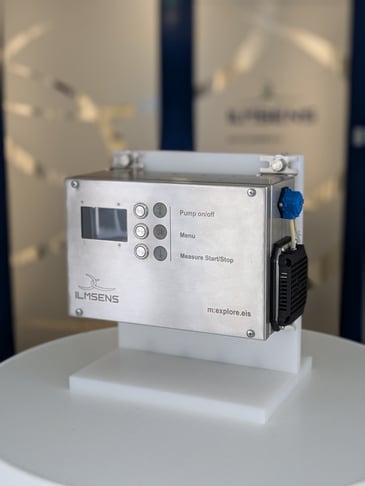

The compact design and flexible configuration options of the m:explore.eis make it a versatile tool for a wide range of applications. Whether you're conducting fundamental research or optimizing industrial processes, this device can provide the insights you need to make informed decisions.

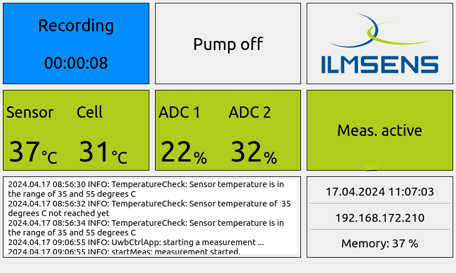

Various information are shown on the display in real-time. From information about the temperature of the measurement cell to the status of the measurement and pump.

Technical data



Check out our Downloads section for the user guide and further documentation.

General information

Dimensions (WxDxH) 35 cm x 12 cm x 20 cm
Weight 7.5 kg
Housing Stainless steel
IP protection class IP65
Ambient operating temperature 10 °C to 25 °C without additional cooling measures
25 °C to 40 °C with additional cooling measures

Measurement properties

Measurement signal Ultra wideband pseudo-noise m-sequence
(no high voltage peaks & low field strength)
Measurement channels
  • Low frequency band: 0.8 kHz to 1200 kHz
  • Radio frequency band: 0.003 GHz to 3 GHz

Periphery

Pump 12V peristaltic pump, variable throughput
Ethernet yes (IP65 / IP67)
USB-A yes (IP65 / IP67)
Power supply 12A / 60V DC
operated on mains connection 100 to 240 V, 50 / 60 Hz
